LMP80 Flat Open Doors

Application Area:High performance system door solution for cold region,hot area andhigh acoustic environment.

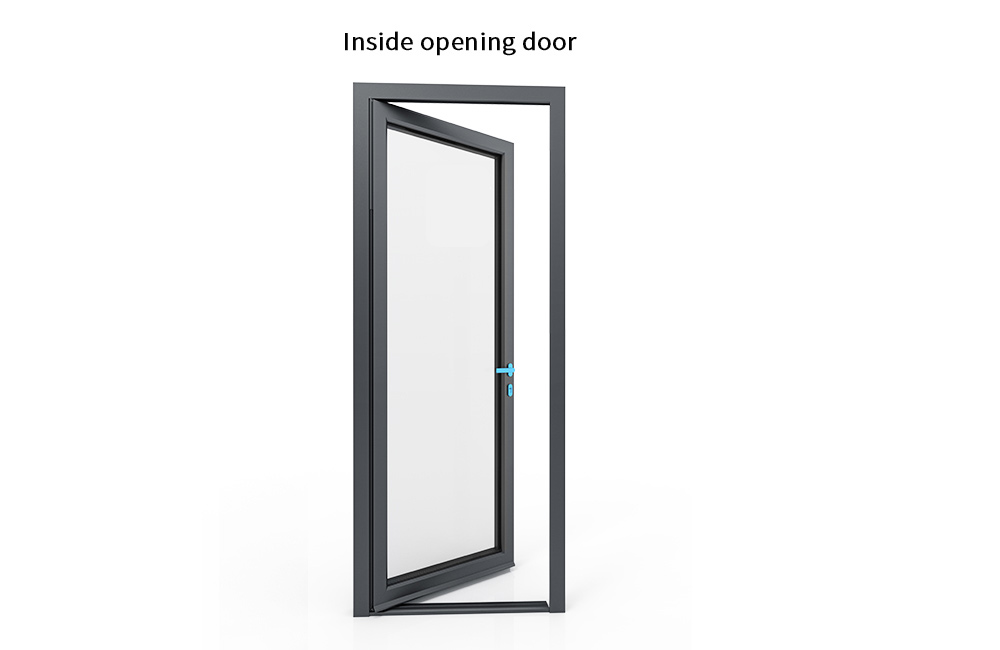

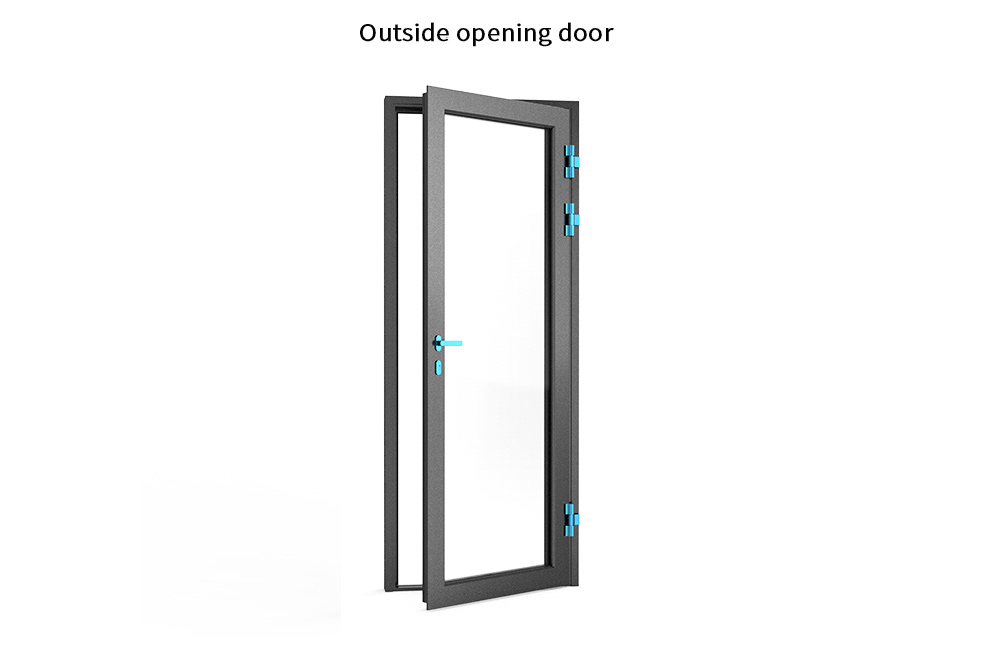

Opening Type：Fix；Inside&outside opening

Configuration

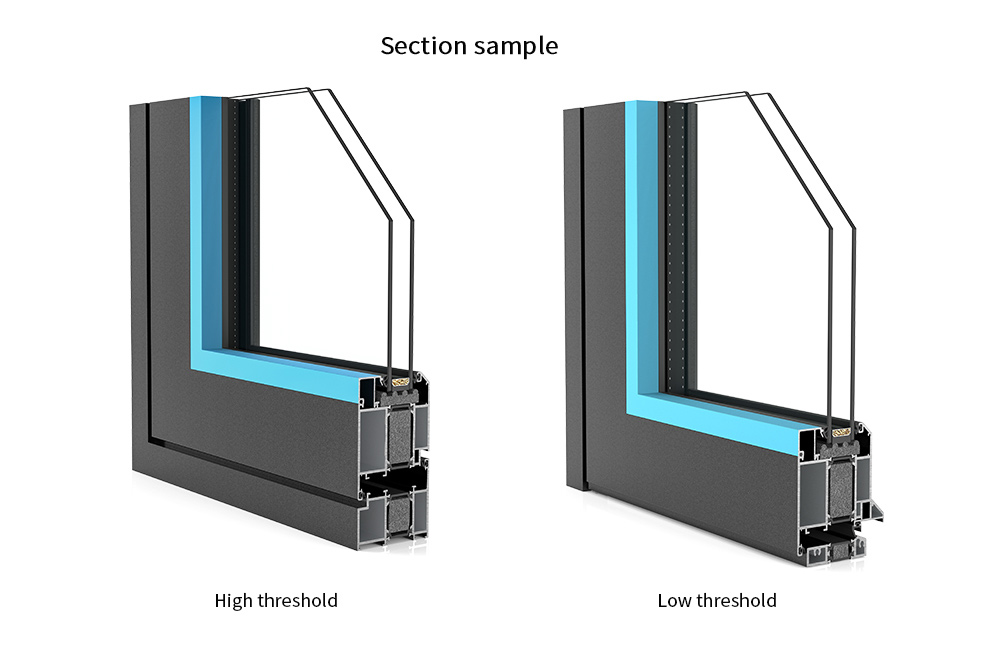

Profile Grade：6060-T5

Profile Thickness：2.0mm

Insulation Strip ：PA66GF25 with 33mm width

Glass Specifications：

Standard Configuration ：5G+20A+5G

Optional Thickness：30mm、39mm

Hardware Brand：Standard configuration：VDV hinge+SIEGENIA

Optional Brand：VDV hinge+Sobinco

Handle Brand ：

Standard configuration：Lan-system

Screen window Parameters：Optional ：Invisible screen doors, folding screen doors

Performance Parameter

Air Tightness[m³/(m²·h)]：level 7

Water Tightness(Pa)：level 5

Wind Load Resistance(Kpa)：level 9

Thermal insulating properties：level 8（K=1.4W/（㎡·K））

Sound Insulation：level 4 （35dB）

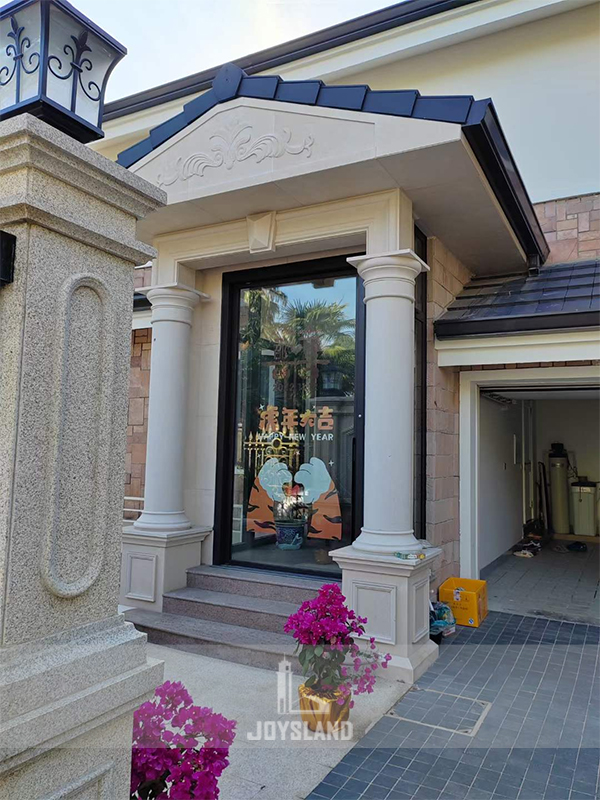

REAL CASE
