LMZ95 Folding Doors

Application Area:Aiming at the requirement of large area open space，a special folding system door scheme considering insulation,noise and sealing performance is proposed.

Opening Type：Fix ;Folding ;

Configuration

Profile Grade :6060-T66

Profile Thickness：2.0mm

Insulation Strip ：PA66GF25 with 24mm width

Glass Specifications：

Standard Configuration ：6G+12A+6G

Optional  Thickness：30mm、42mm

Hardware Brand：Standard configuration：Customized hardware, with a single leaf weight not exceeding 120kg

Handle Brand ：

Standard configuration：Customized handle

Sash Thickness：95mm

Max.Panel Width：1200mm

Max.Panel Height：3000mm

Panel weight：100kg

Performance Parameter

Air Tightness[m³/(m²·h)]：level 8

Water Tightness(Pa)：level 6

Wind Load Resistance(Kpa)：level 9

Thermal insulating properties：level 6 （K=2.45W/（㎡·K））

Sound Insulation：level 4 （38dB）

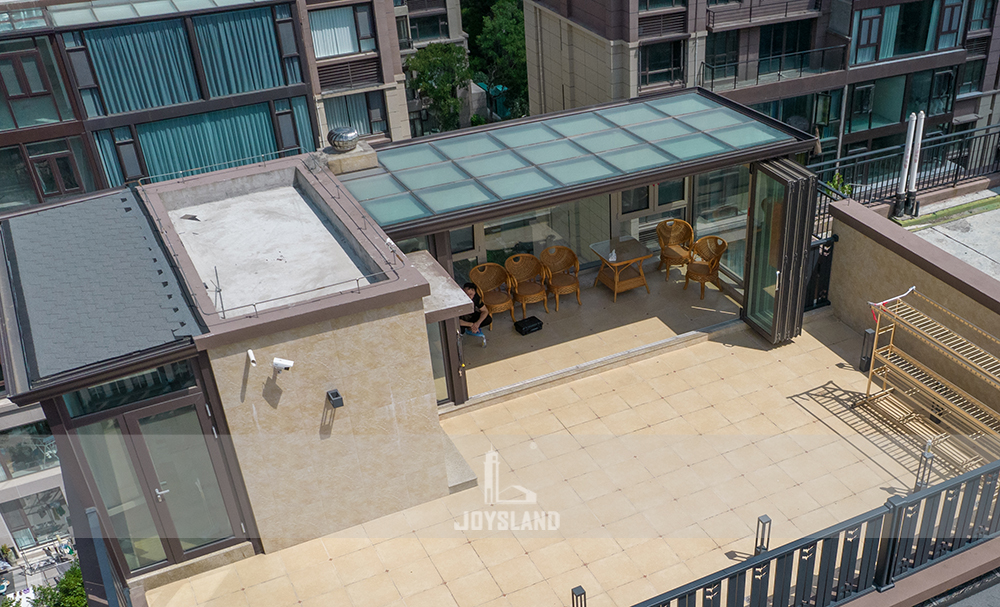

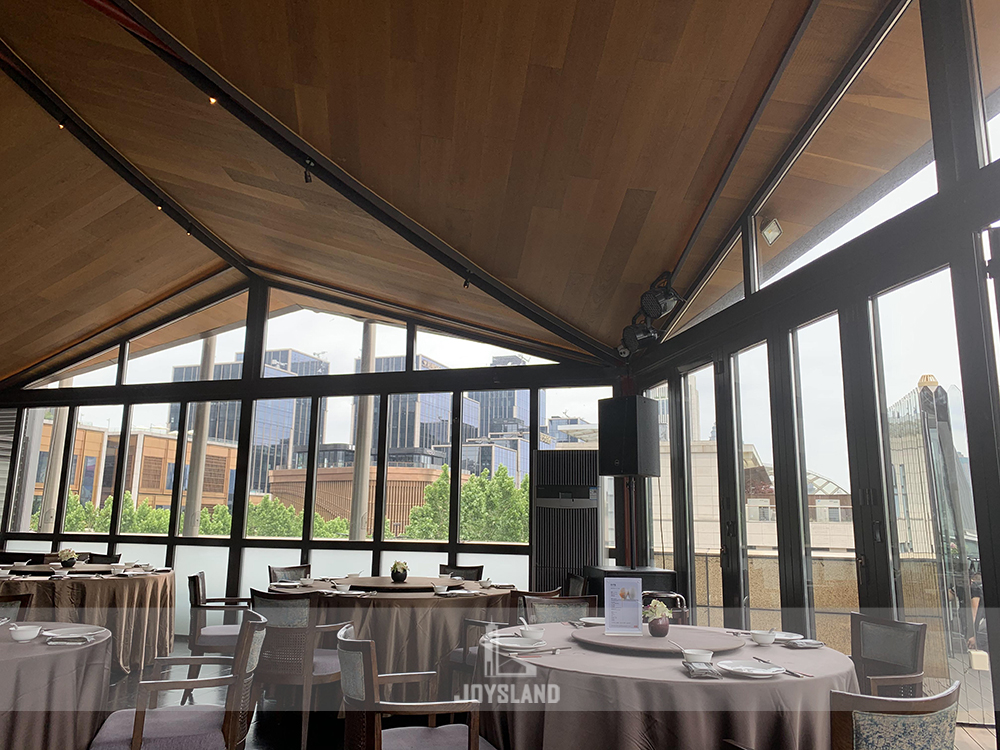

Real Case
