LMT 152 Silding/Lifting and Silding Doors

Application  Area:For all weather conditions,high air tightness,water tightness,thermal insulation and sound insulation performance push/pull/no corner elevation push-pull system door solution.

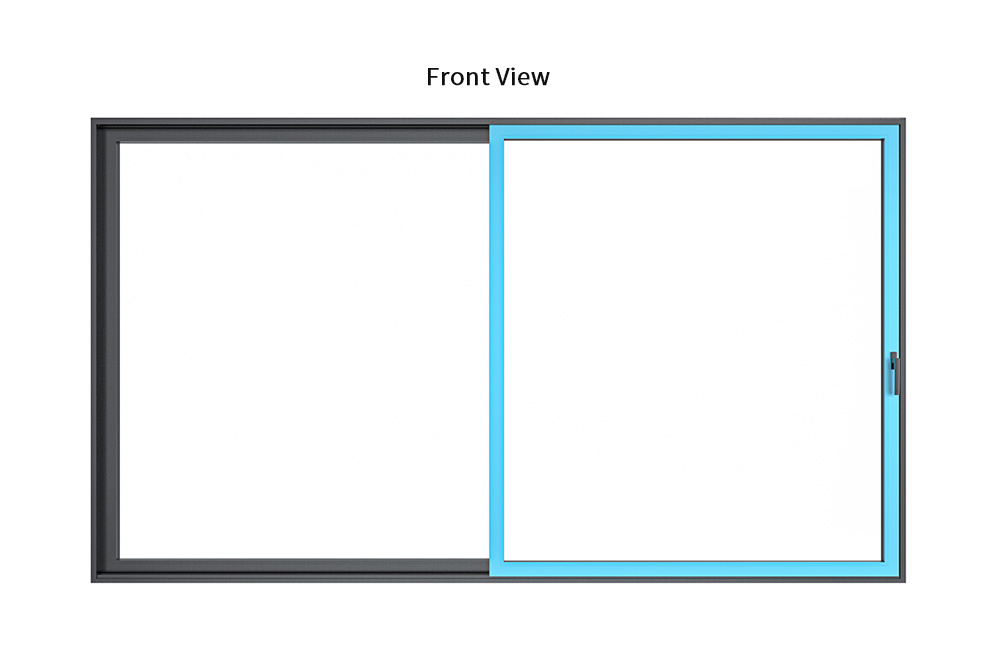

Opening Type：Fix ;Sliding ;Lifting and sliding ;No corner lift sliding

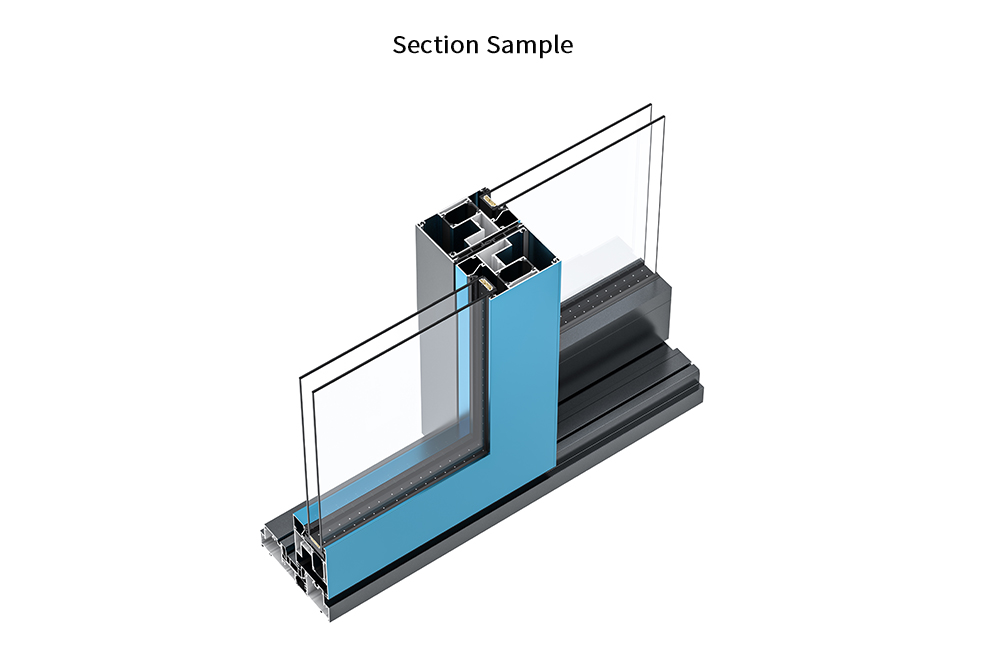

Configuration

Profile Grade：6060-T66

Profile Thickness：2.0mm

Insulation Strip ：PA66GF25 with 24mm width

Glass Specifications：

Standard Configuration ：5G+20A+5G

Optional  Thickness：30mm、39mm

Hardware Brand：

Standard configuration：Sobinco

Handle Brand ：

Standard configuration：Sobinco

Screen Window Parameters：

Optional ：Invisible screen doors, folding screen doors

Performance Parameter

Air Tightness[m³/(m²·h)]：level 8

Water Tightness(Pa)：level 4

Wind Load Resistance(Kpa)：level 9

Thermal insulating properties：level 6 （K=2.45W/（㎡·K））

Sound Insulation：level 3 （30dB）

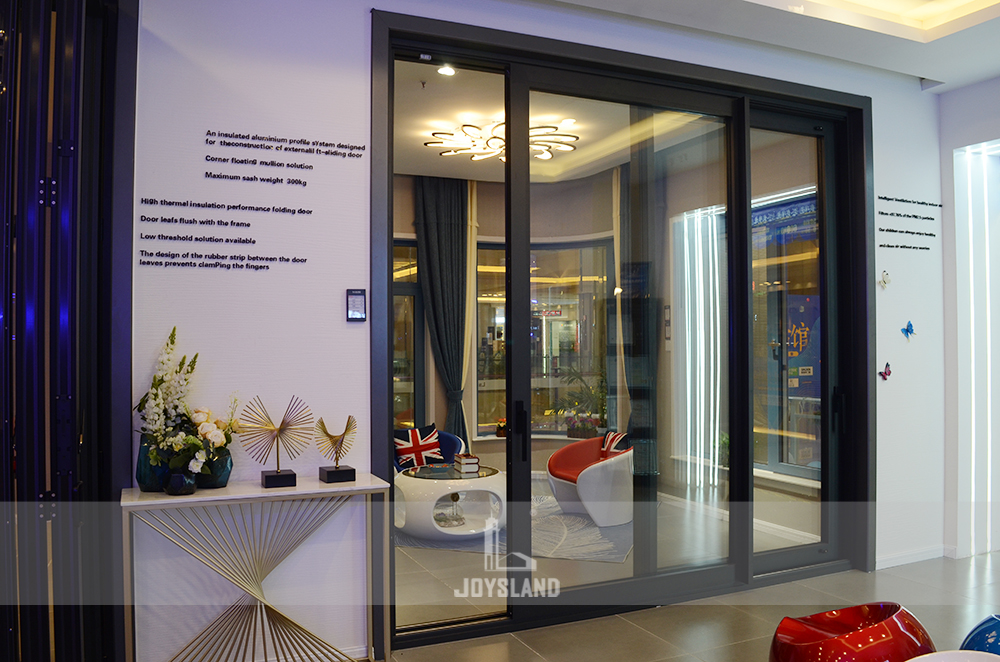

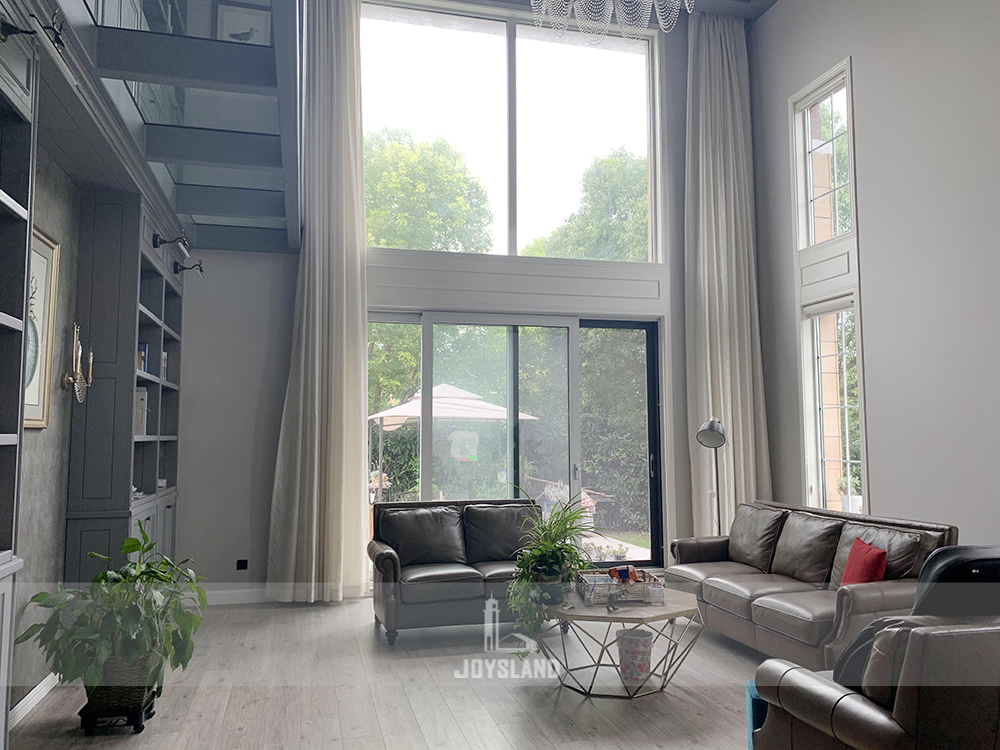

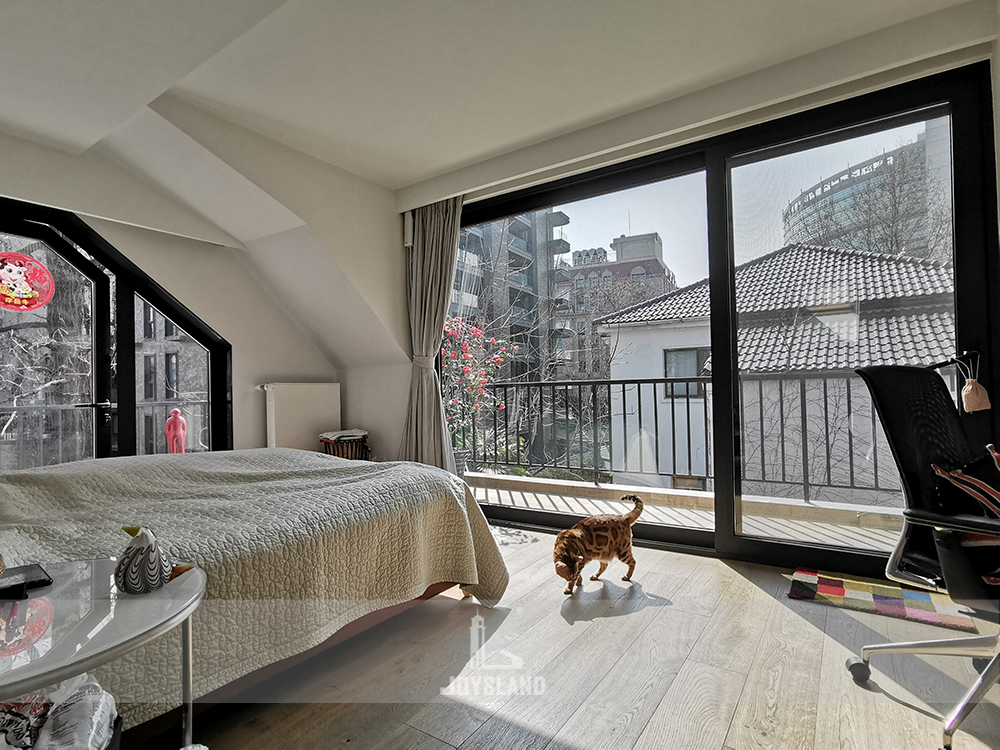

Real Case
