Application Area:The revolutionary opening methodhas found a good balance between theusage habits and high performance of Chinese customers,and the specialopening system door and window solutionfor the whole climate condition.

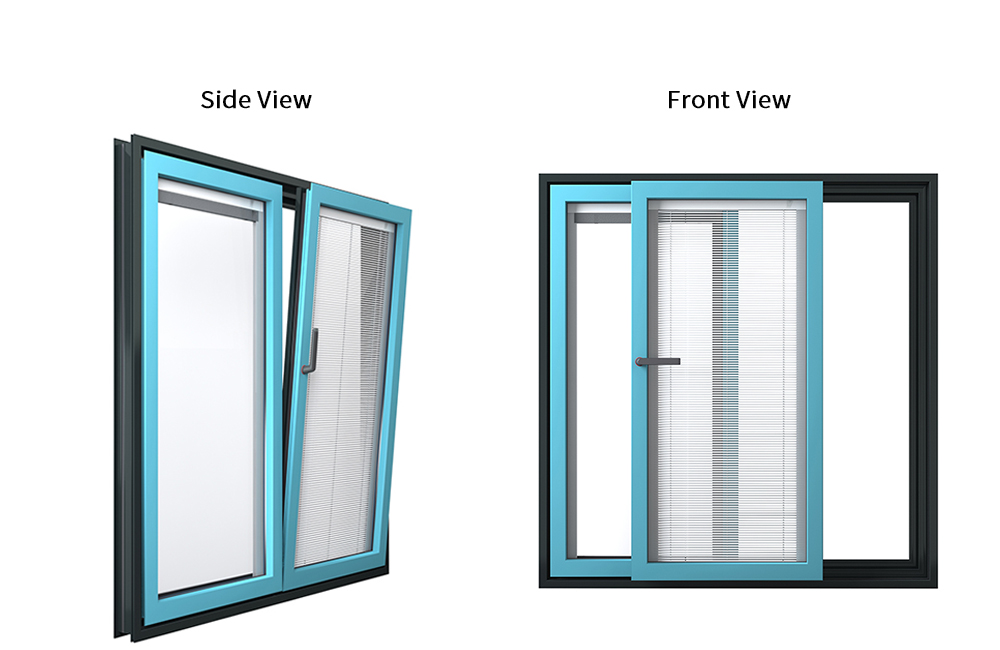

Opening Type：Fix；Sliding & tilt

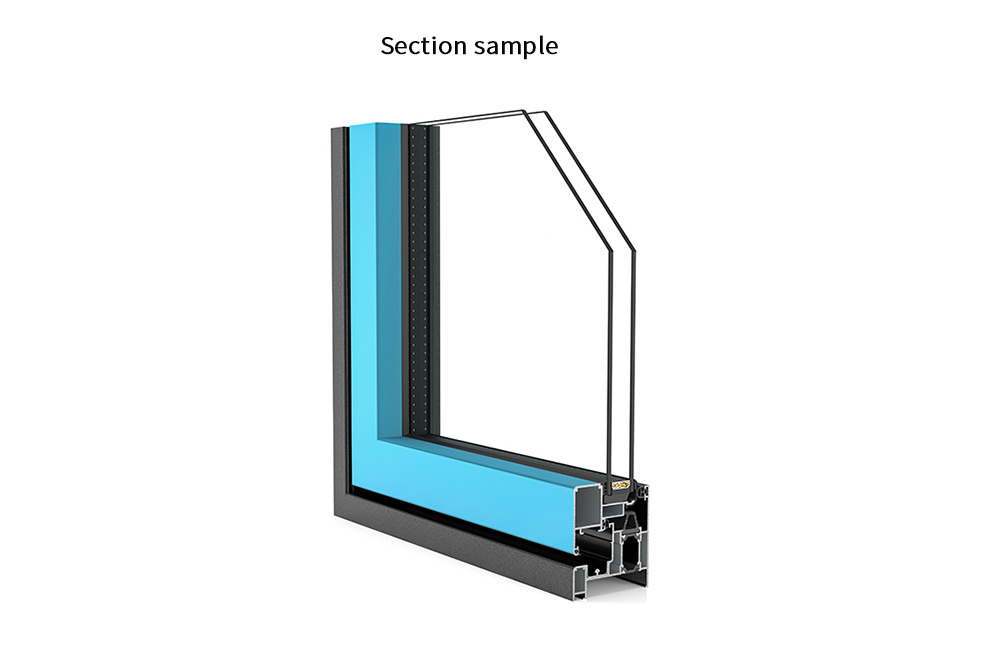

Configuration

Profile Grade：6060-T66

Profile Thickness：1.8mm

Insulation Strip ：PA66GF25 with 30mm width

Glass Specifications：

Standard Configuration ：5G+20A+5G Limited thickness

Hardware Brand：

Standard configuration：System specific configuration

Handle Brand ：

Standard configuration：Lan-system

Optional Brand：HOPPE handle

Performance Parameter

Air Tightness[m³/(m²·h)]：level 8

Water Tightness(Pa)：level 6

Wind Load Resistance(Kpa)：level 9

Thermal insulating properties：level 8 （K=1.5W/（㎡·K））

Sound Insulation：level 4 （35dB）

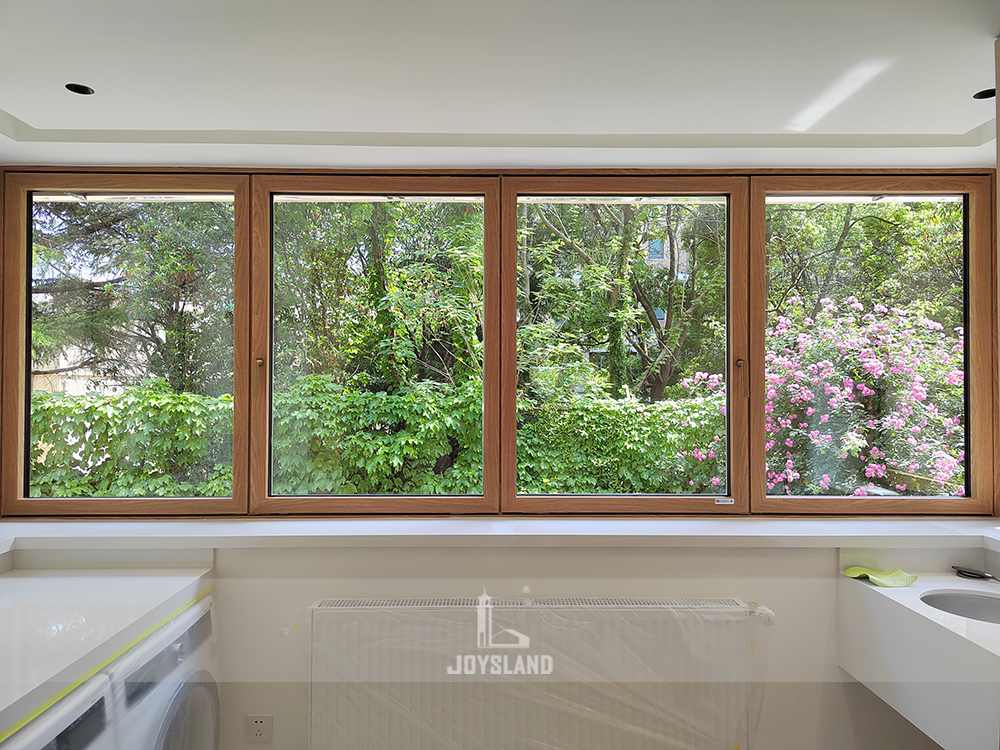

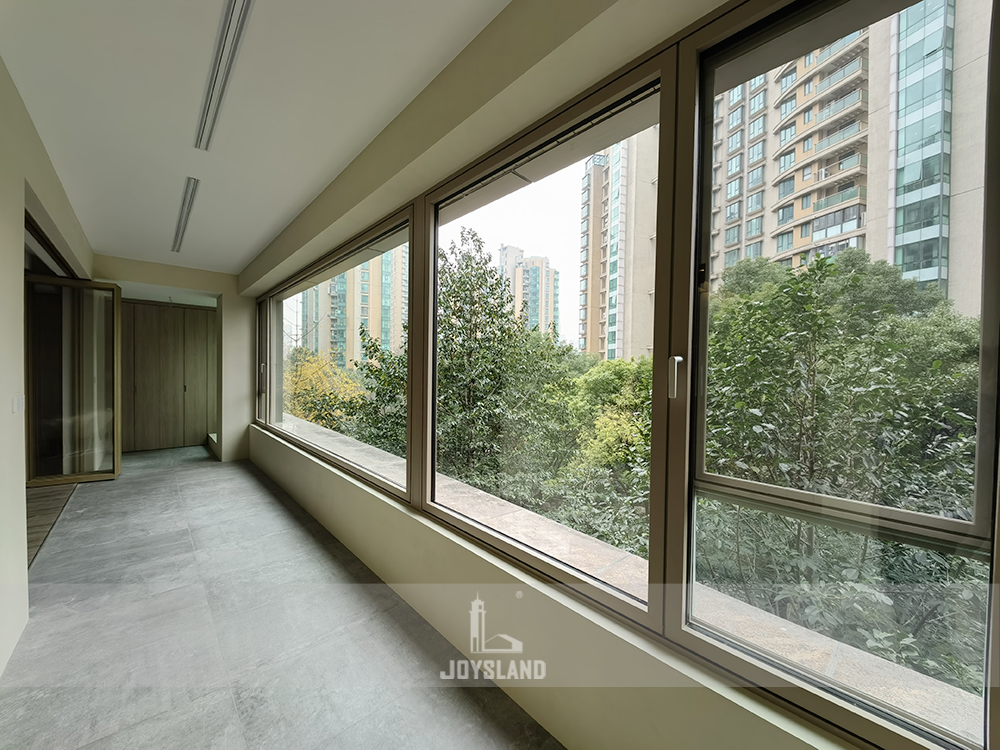

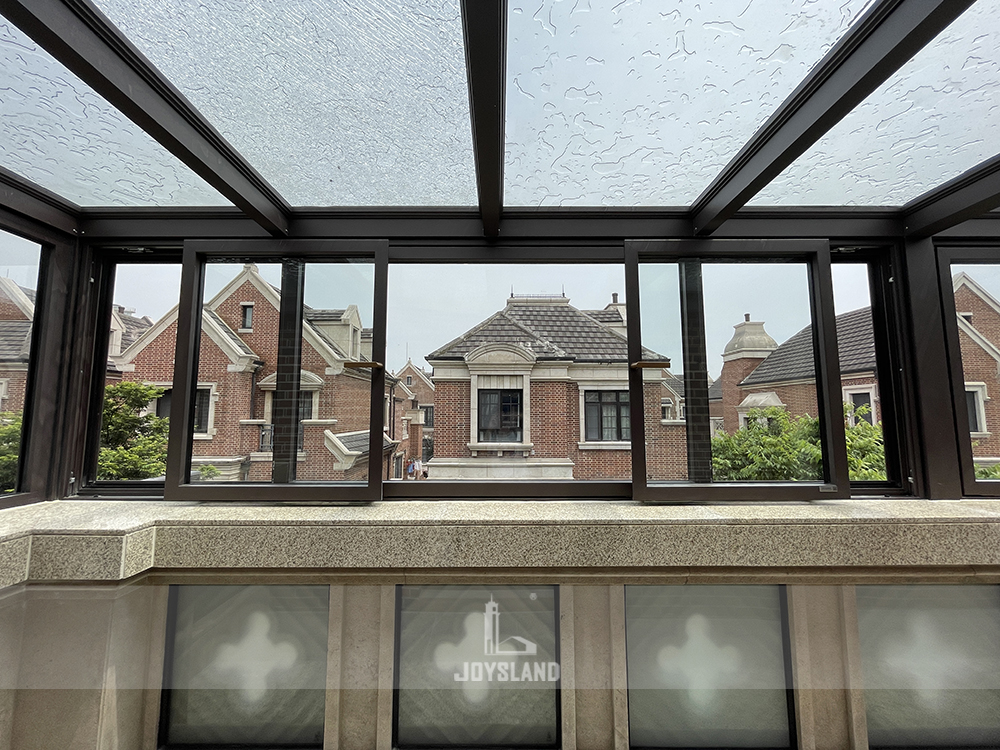

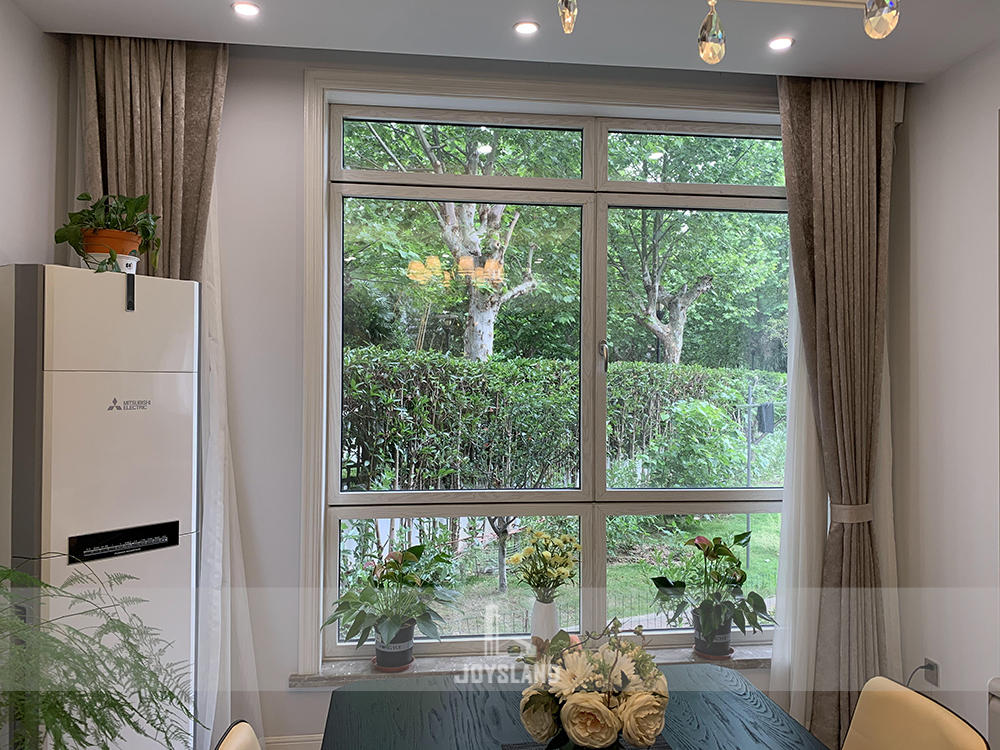

REAL CASE
